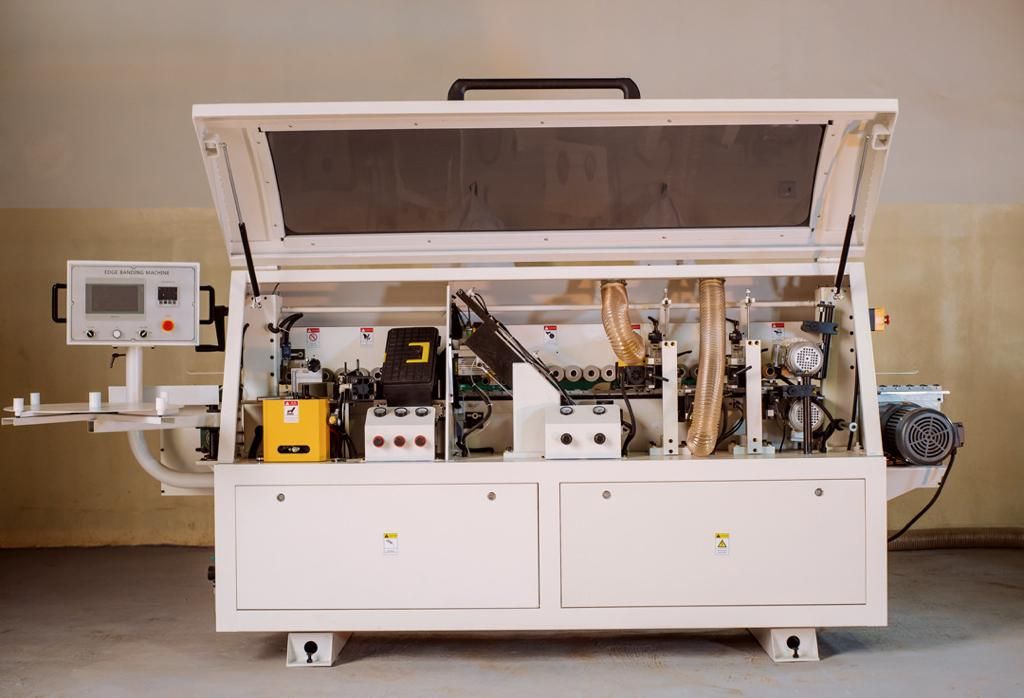

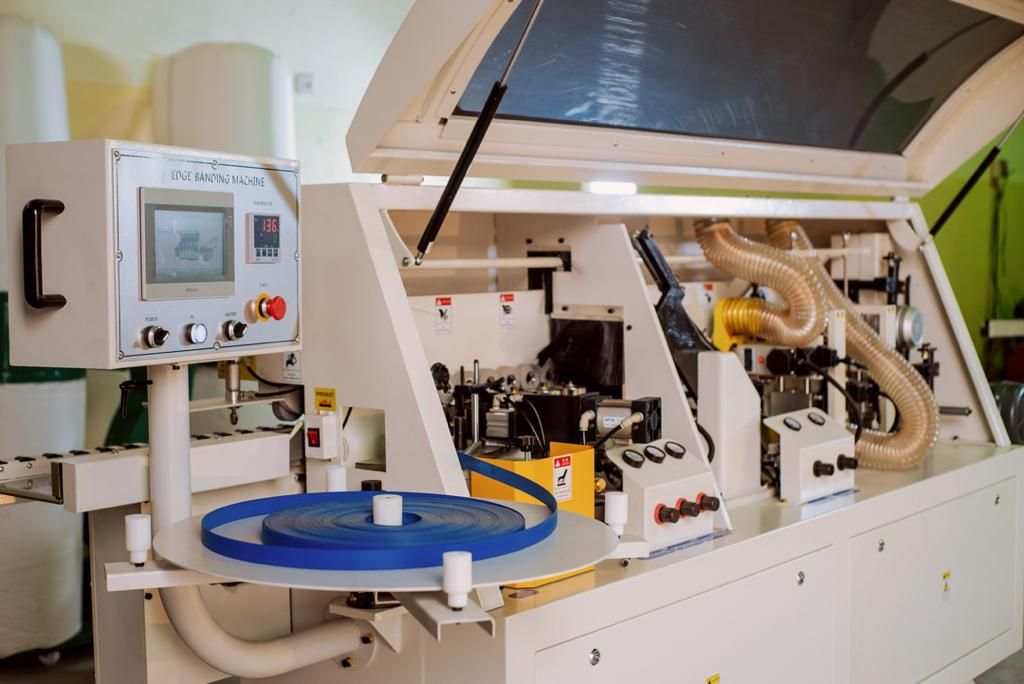

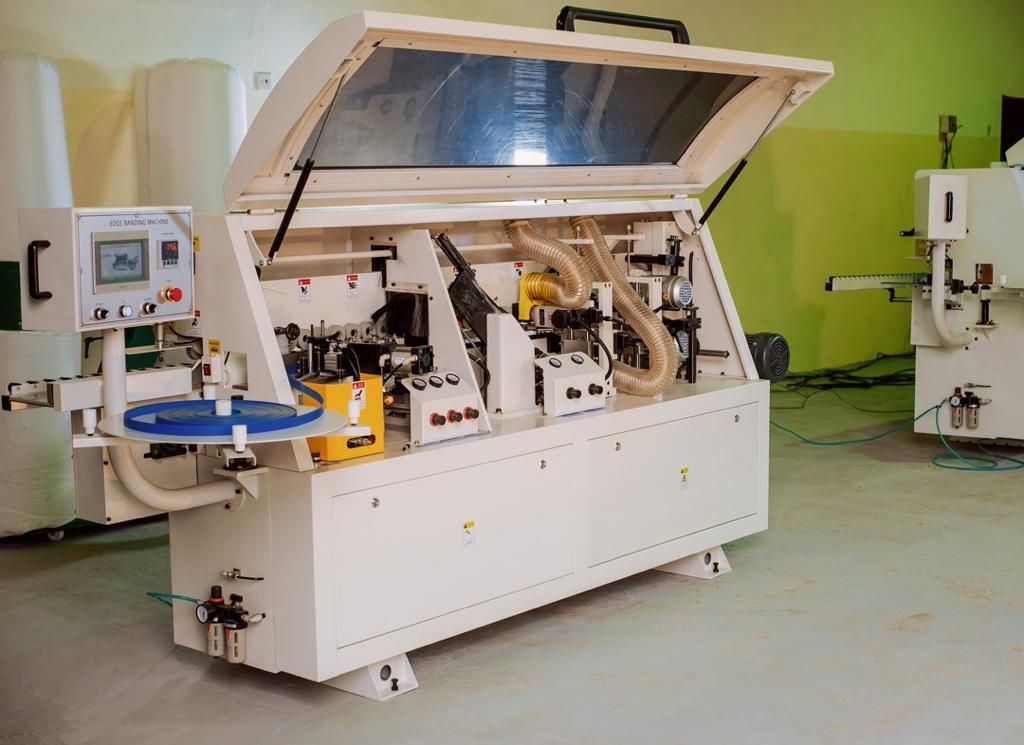

WOODMETAL WE 50X 5-Function Automatic Edge Banding Machine

he WOODMETAL WE50X Automatic Edge Banding Machine is a reliable 5-function industrial edge bander designed for furniture manufacturing, cabinet production and professional woodworking. It provides the essential edge banding functions required to achieve clean, consistent and professional panel finishing.

The WE50X performs Gluing, End Trimming, Fine Trimming, Scraping and Buffing automatically, making it an ideal entry-level automatic edge bander for furniture factories and woodworking businesses.

5 Functions

1. Gluing: Applies hot-melt adhesive and bonds the edge tape firmly to the panel.

2. End Trimming: Automatically trims excess edge tape from the front and rear ends of the panel.

3. Fine Trimming: Precisely trims excess edge tape from the top and bottom for a neat and accurate finish.

4. Scraping: Removes fine trimming marks and smoothens the edge tape for improved finishing quality.

5. Buffing: Polishes the finished edge, providing a clean and professional appearance.

Key Specifications

• Edge Thickness: 0.4–3mm
• Feed Speed: 18m/min
• Panel Thickness: 10–60mm
• Minimum Panel Length: ≥120mm
• Minimum Panel Width: ≥50mm
• Total Motor Power: 7.5kW
• Working Pressure: 0.7MPa (7 bar)

Applications

The WOODMETAL WE50X industrial edge banding machine is suitable for MDF, MFC, HDF, particle board, plywood and other compatible furniture panels.

It is ideal for producing kitchen cabinets, wardrobes, office furniture, TV consoles, shelves and other panel furniture.

For businesses looking for an automatic edge banding machine in Nigeria, MDF edge bander, furniture making machine, cabinet making machine or woodworking machine, the WOODMETAL WE50X provides an efficient and affordable solution for professional furniture production.
