WOODMETAL WE 500X Edge Bander with 5 Functions
N17 000 000.00
In stock: 5 available
1

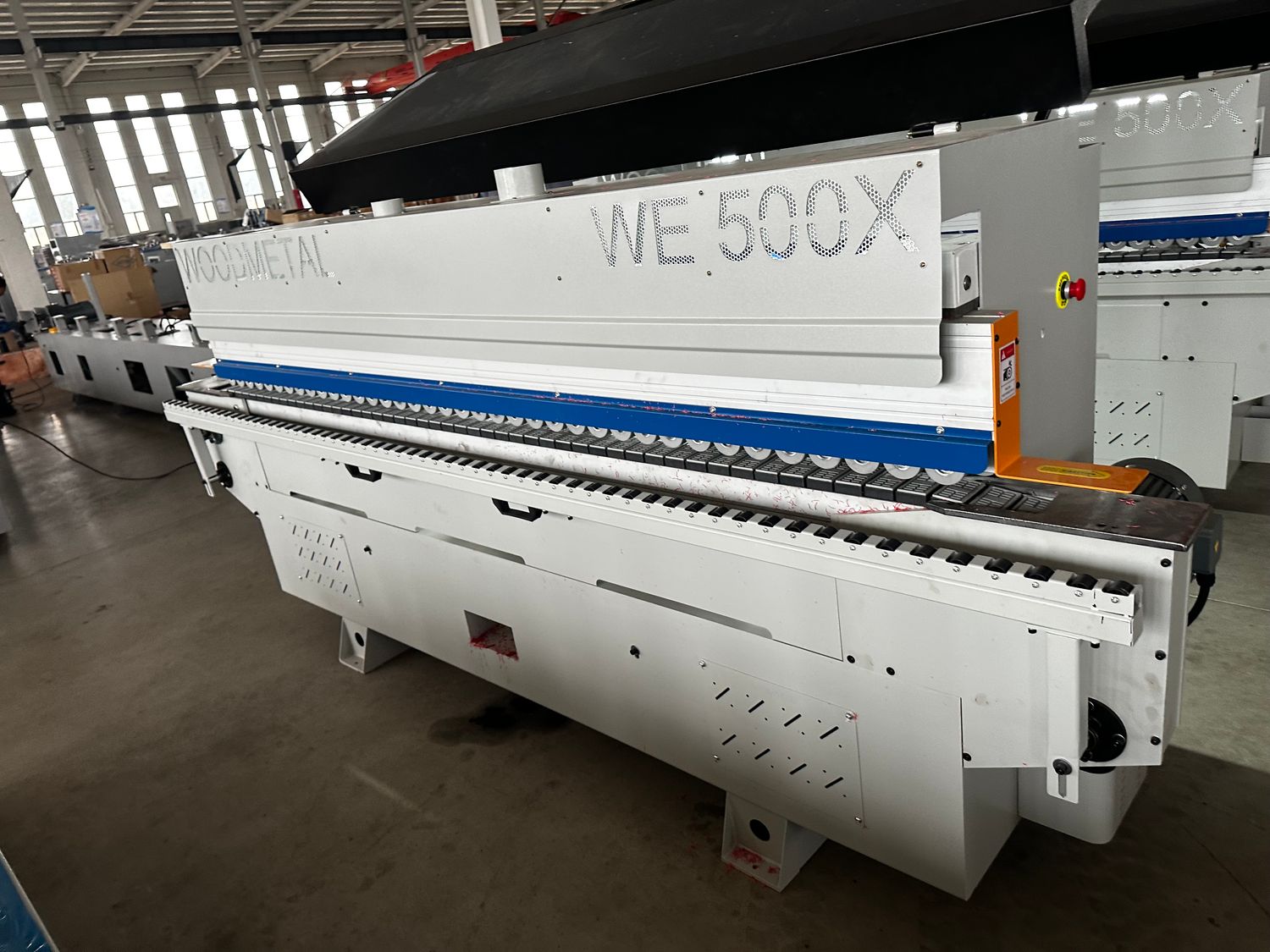

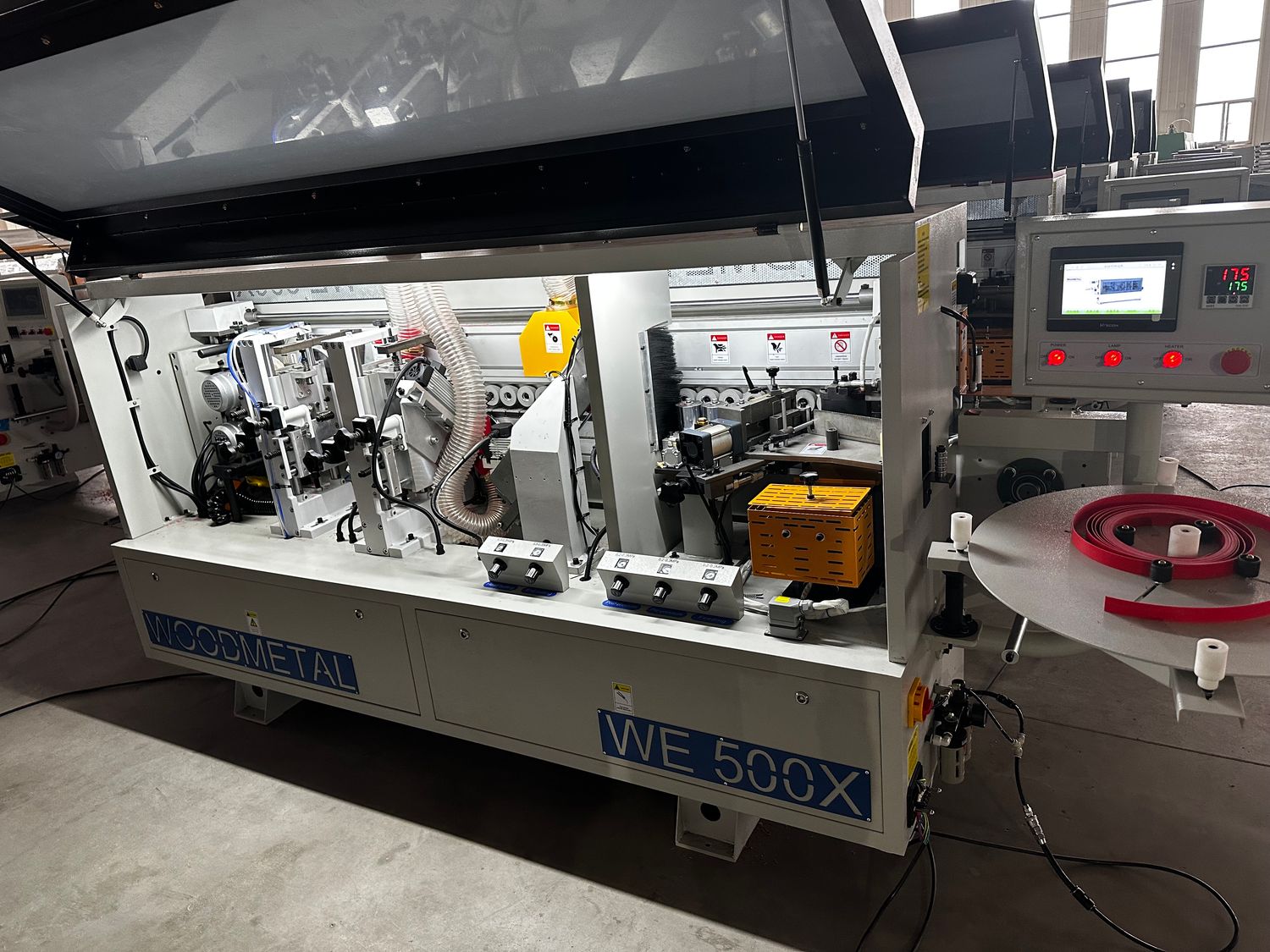

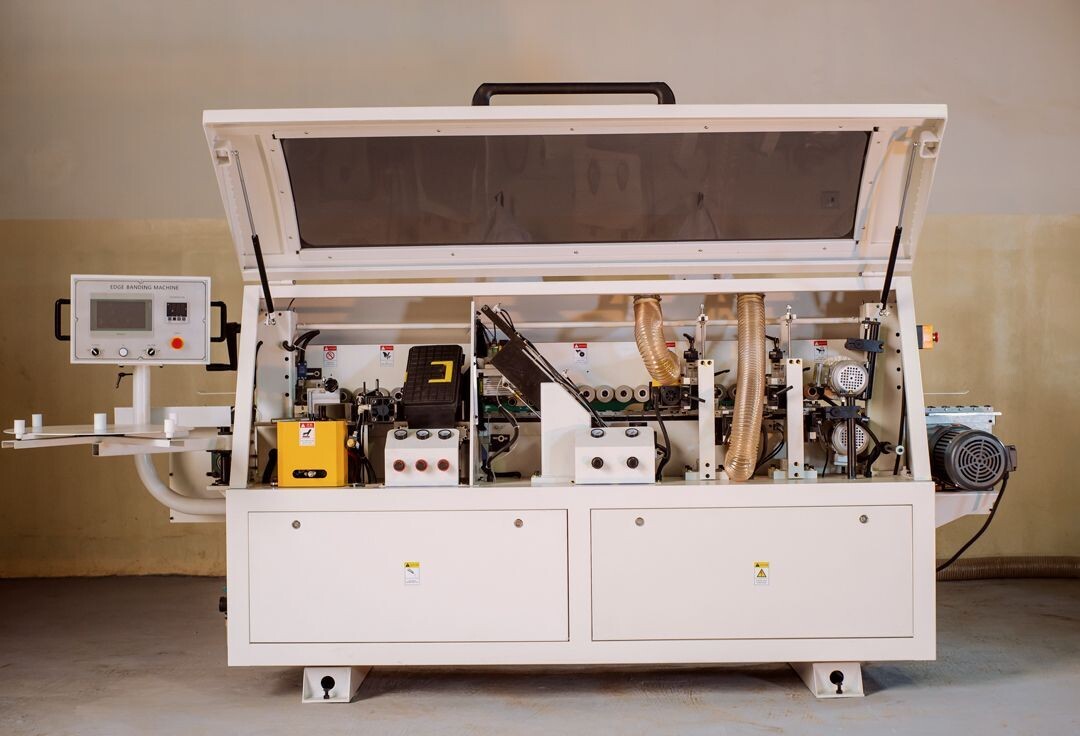

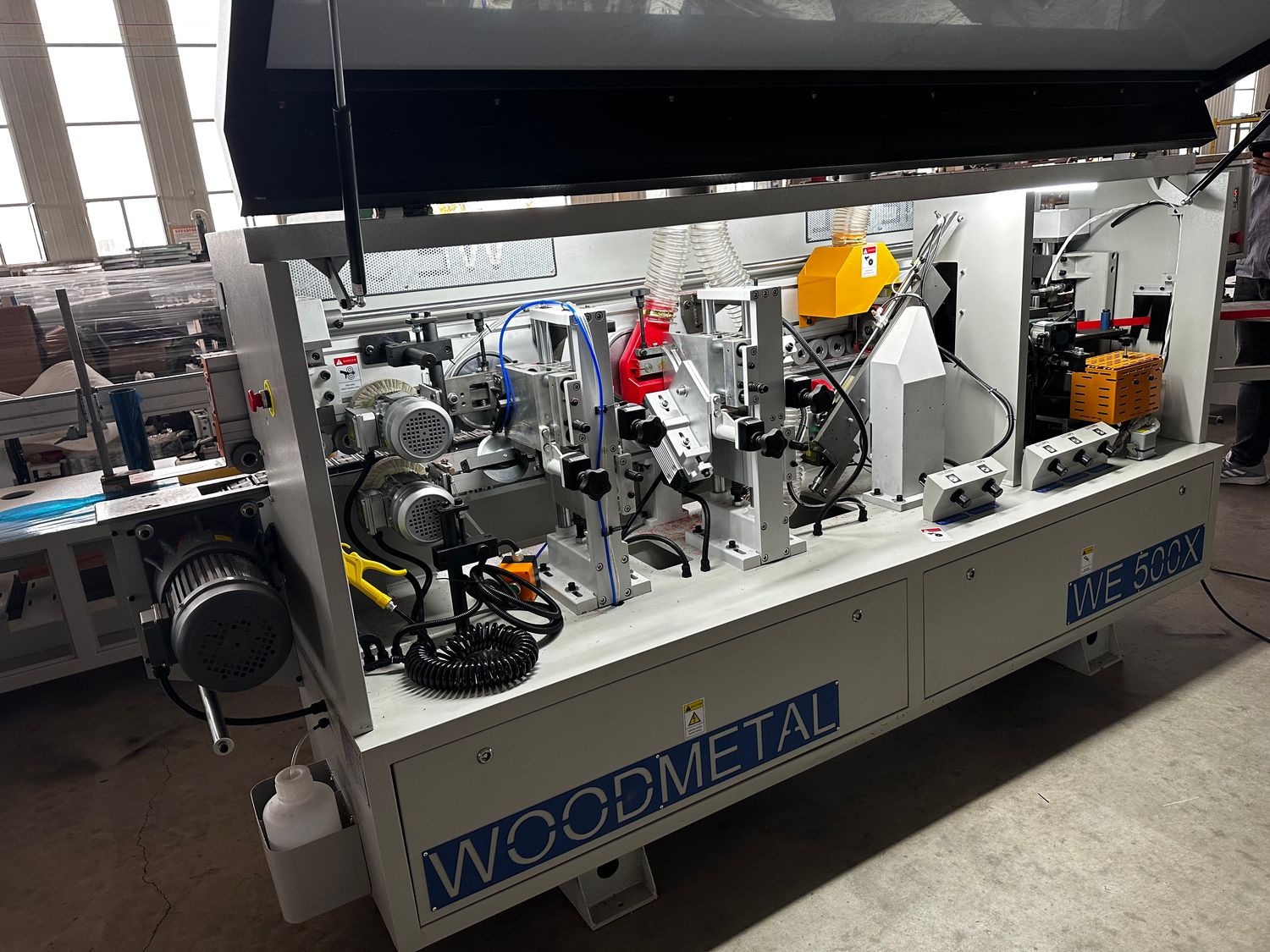

WOODMETAL WE 500X Edge Bander with 5 Functions
Product Details
Brand: WOODMETAL

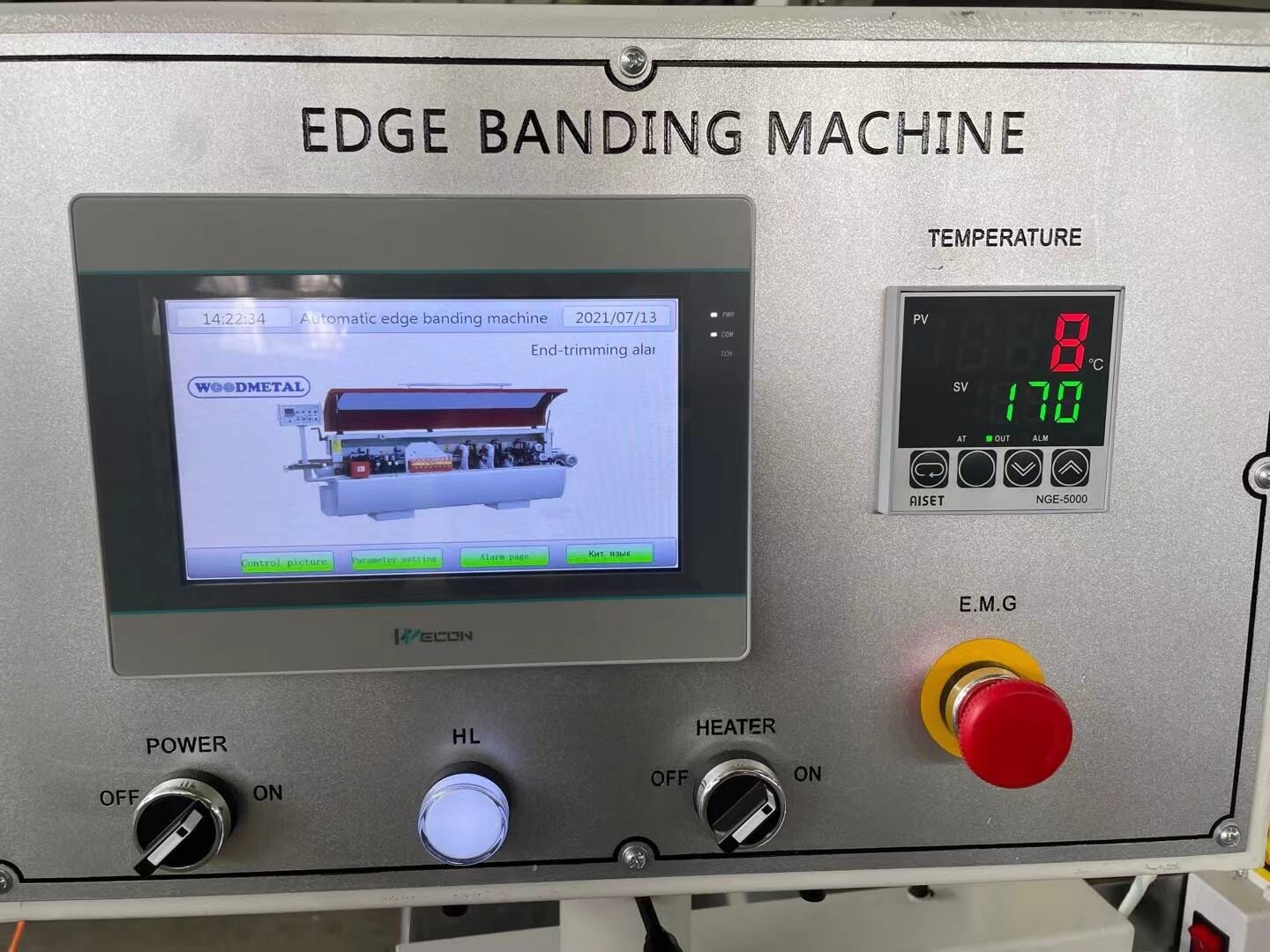

The WOODMETAL Edgebander 500X is a professional series machine intended for medium to large production plants with a large amount of work demand. Designed and built with reliability and quality in mind, the 500X can be used for very long hours without worry about machine fatigue or decline in the quality of work output. One of its major advantage is its simple structure and intuitive operation via an interactive touchscreen with details in English. Its edging unit has a large pot and is fitted to accept locally available Ethylene-Vinyl Acetate (EVA) hot melt glue.
Given its rigidity, reliability and affordability, the WE 50X has become a very popular machine among Cut and Edge businesses as well as professional factories.
FEATURES
- Glueing
- End Cutting
- Fine Trimming
- Scrapping
- Buffing
Video of WE 50X 5-Functions Edge Banding Machine
SPECIFICATIONS
|
Edge Thickness: |
0.4 – 3mm |
|
Feed Speed: |
18m/min |
|
Panel Thickness: |
10 - 50mm |
|
Panel Length: |
>= 140mm |
|
Panel Width: |
>=50mm |
|
Glue Motor Power: |
0.37kw |
|
Glue tank heating power: |
1.5kw |
|
End cutting motor power: |
0.55kw *2 @18000rpm |
|
Fine trimming motor power: |
0.75kw *2 @18000rpm |
|
Buffing motor power: |
0.18kw *2 @1400rpm |
|
Total motor power: |
7.0kw |
|
Working pressure: |
0.7mpa (7bar) |
