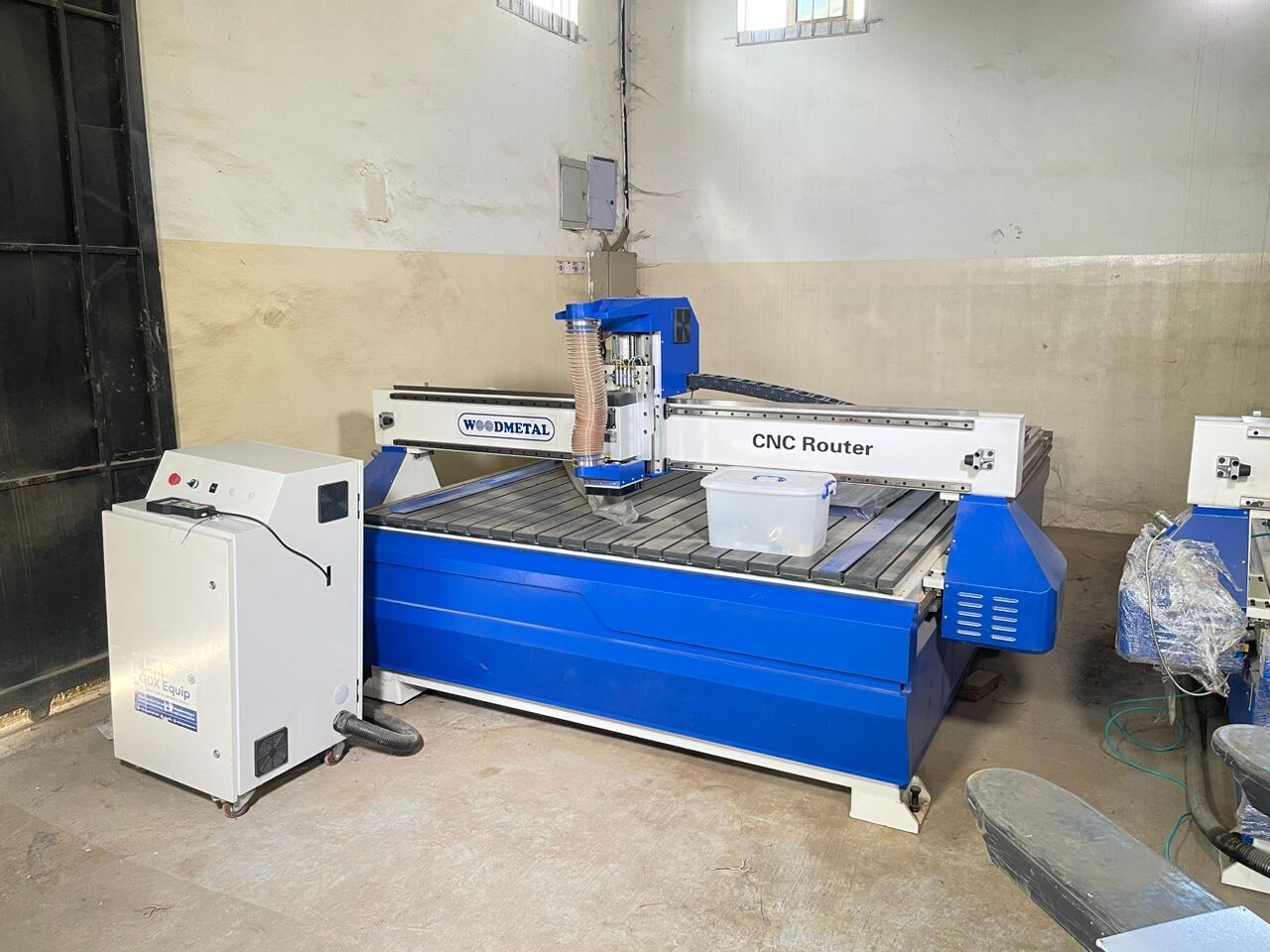

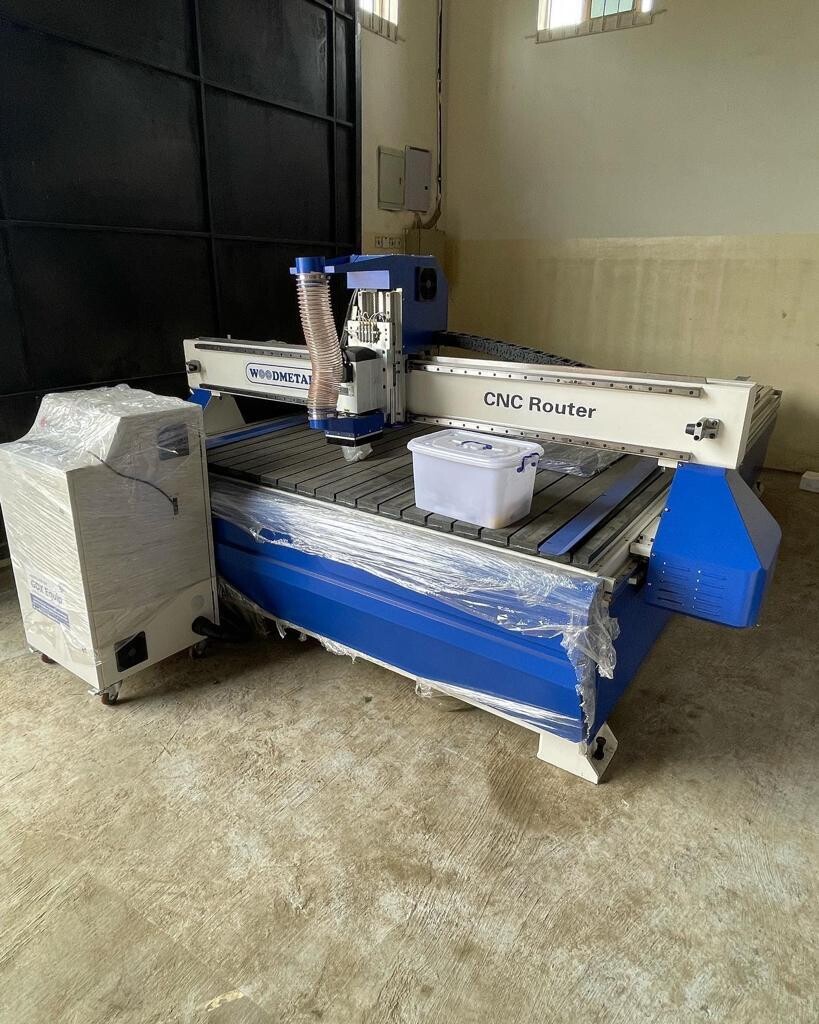

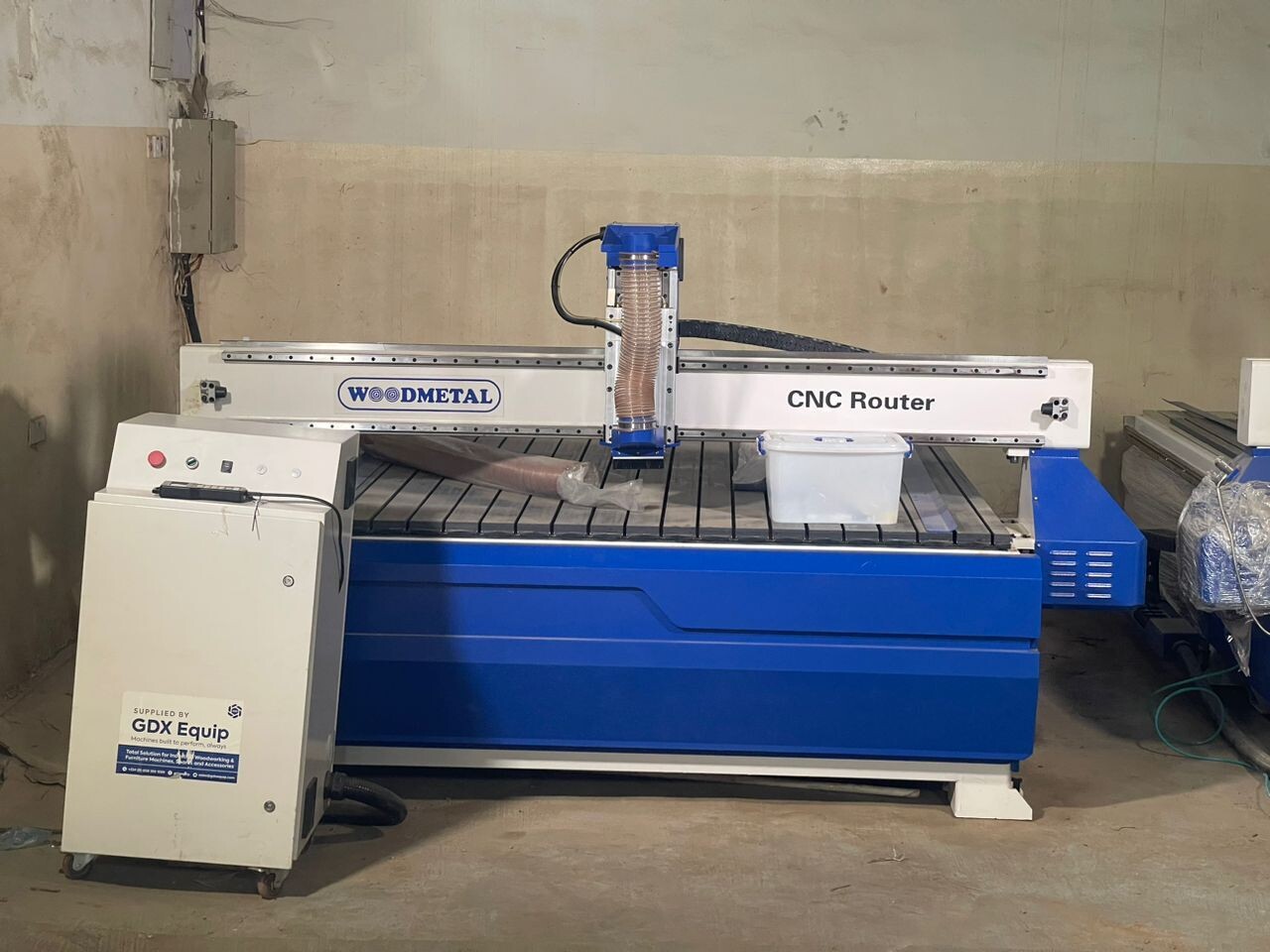

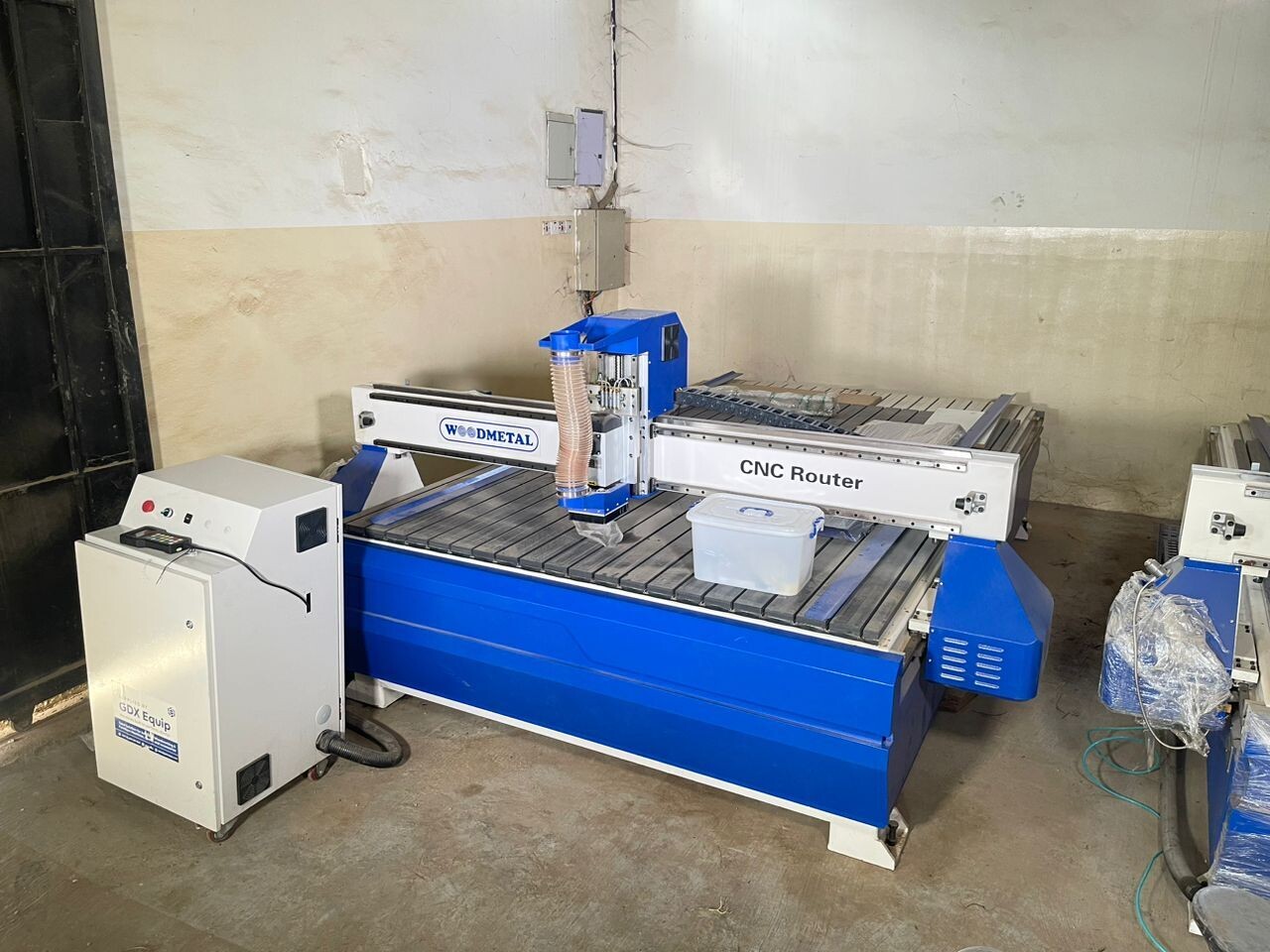

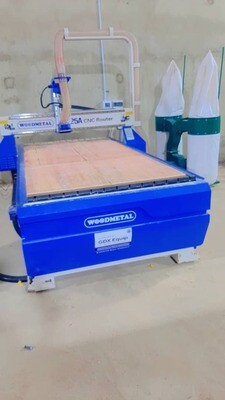

WOODMETAL CNC ROUTER 2130A

Machine Structure: 8mm Thickness welded steel tubes

Max. Working Size: 2100*3000*200mm for 2130A model

Control System: NK105 DSP hand-held device

X/Y Axis Transmission: 1.5 module precision helical racks and gears

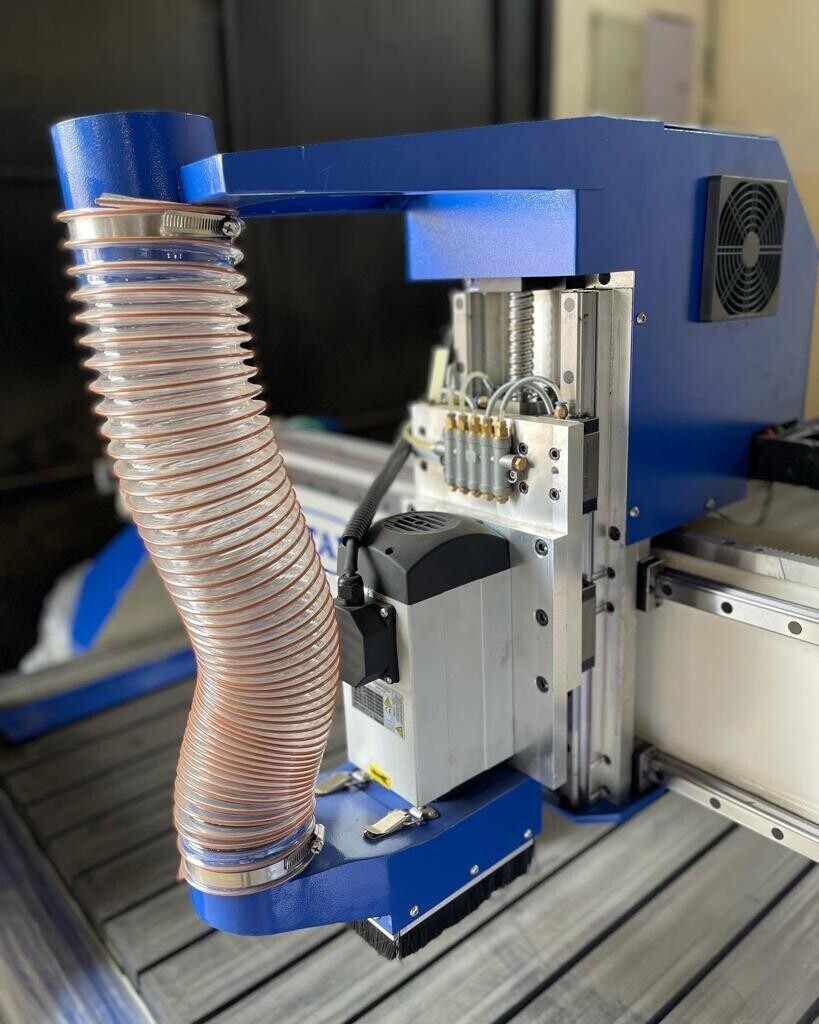

Z Axis Transmission: Taiwan ball screw

Guide Rail: Taiwan 25mm linear guide rails

Motor: CW stepper motors and YAKO drivers

VFD/Inverter: HPMONT brand

Main Electrical Component: Schneider

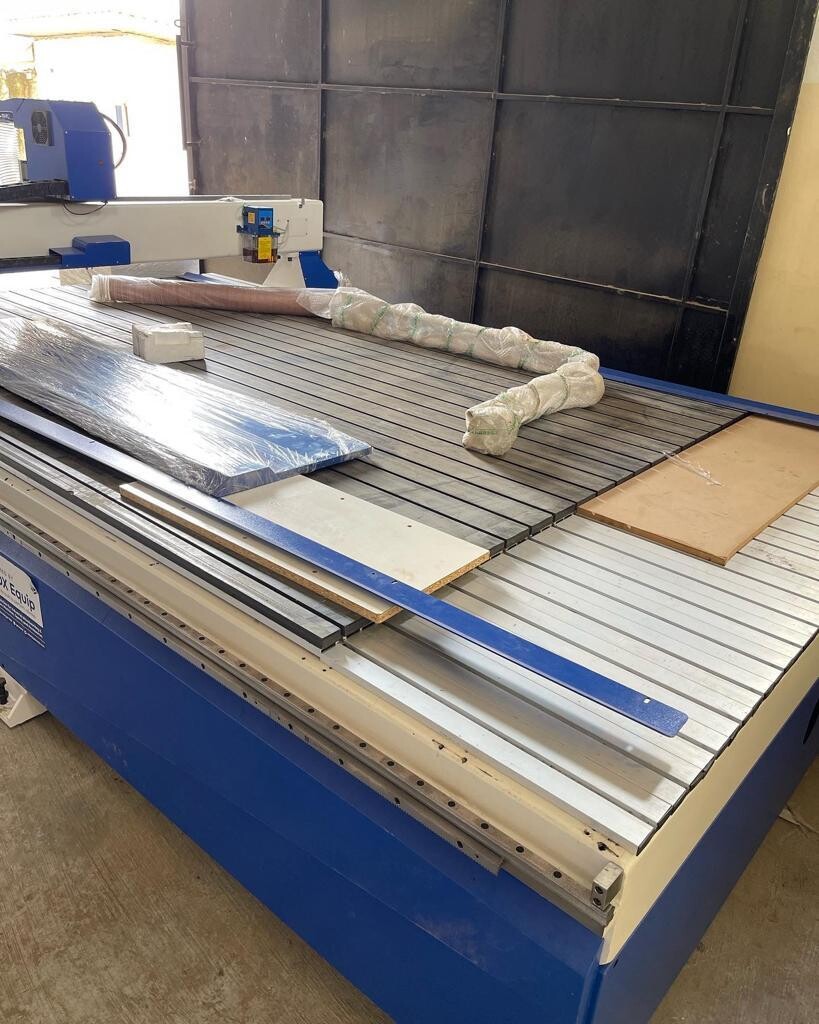

Working Table: PVC sheet + Aluminum T-slot

Switch and Emergency Stop: Equipped

Lubrication System: Manual lubrication

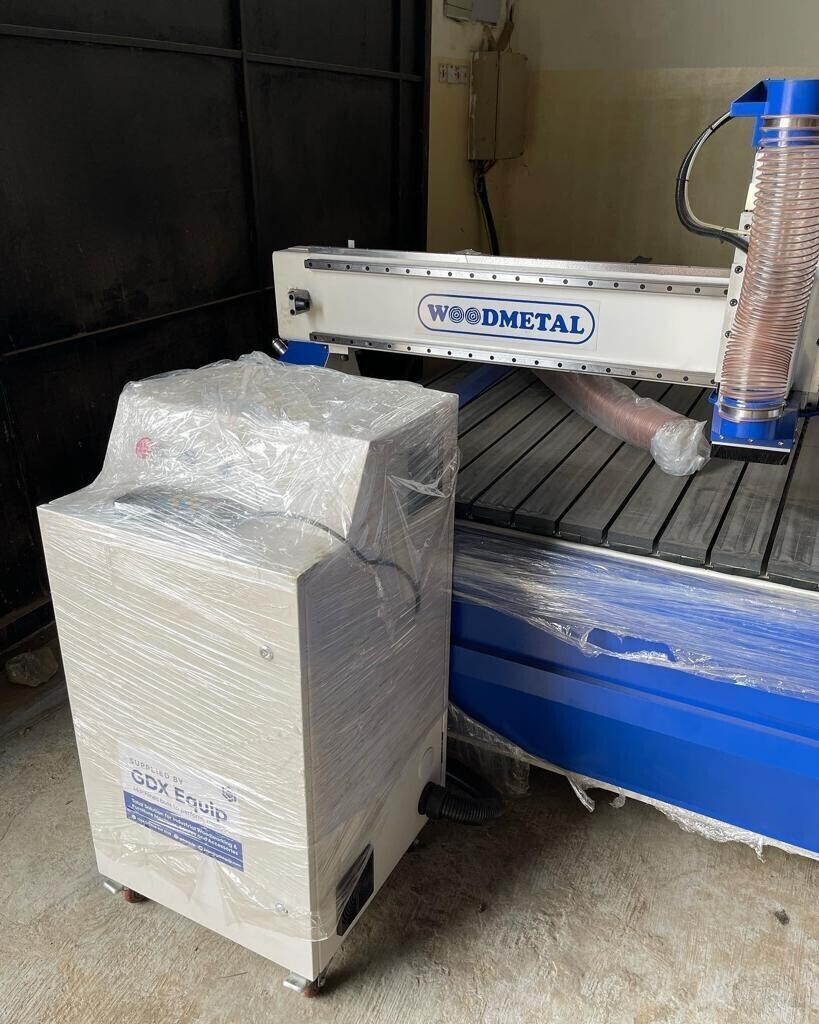

Dust Collection: 3.0KW 4hp with two bags

Tool sensor: Equipped

Total: Power: 6.5kw
